Kaleidoscope

// Stage 1 · Angle and distance
// Every pixel can be named by how far it is from the centre and which way it points. Colour by both and see them.

// @param speed 0.5 0.0 2.0 How fast the pattern turns

constant float TAU = 6.2831853;

float4 shade(float2 uv, constant Uniforms& u, constant Params& p) {
    float px = 2.4 / min(u.resolution.x, u.resolution.y);
    float2 q = (uv - 0.5) * u.resolution * px;
    float t = u.time * p.speed;
    // Polar coordinates: the distance from the centre, and the angle from the right, from -pi to pi.
    float r = length(q);
    float a = atan2(q.y, q.x) + t * 0.15;
    // The angle runs once round the circle, from dark to bright, with a jump where it wraps from pi back to -pi.
    float angle = fract(a / TAU);
    // The distance makes rings: a thin line every fifth of a unit.
    float ring = smoothstep(0.42, 0.48, abs(fract(r * 5.0) - 0.5));
    float3 ember = float3(1.0, 0.59, 0.2);
    float3 col = ember * angle * angle + float3(1.0, 0.95, 0.87) * ring * 0.6;
    return float4(col, 1.0);
}

// Stage 2 · Slices of a circle
// Cut the circle into equal slices and lay each on the first. Whatever is drawn in one slice repeats all the way round.

// @param speed 0.5 0.0 2.0 How fast the shapes drift and the pattern turns
// @param segments 6.0 2.0 16.0 How many slices go round the centre

constant float TAU = 6.2831853;

// Fold every slice onto the first, then turn the angle and distance back into a point.
float2 slices(float2 q, float n, float spin) {
    float r = length(q);
    float a = atan2(q.y, q.x) + spin;
    float slice = TAU / n;
    a -= slice * floor(a / slice);
    return r * float2(cos(a), sin(a));
}

float sdCircle(float2 p, float r) {
    return length(p) - r;
}

float sdBox(float2 p, float2 b) {
    float2 d = abs(p) - b;
    return length(max(d, 0.0)) + min(max(d.x, d.y), 0.0);
}

float2 rot(float2 p, float a) {
    float c = cos(a), s = sin(a);
    return float2(c * p.x - s * p.y, s * p.x + c * p.y);
}

// Where bead i is: it rises from the centre, drifts out along the slice, and sways across it as it goes.
float2 bead(int i, float t) {
    float life = fract(t * 0.12 + float(i) / 3.0);
    float r = 0.1 + life * 2.4;
    float side = 0.5 + 0.5 * sin(t * 0.9 + float(i) * 2.1);
    return float2(r, r * 0.45 * side);
}

// Three beads that grow and shrink as they drift out, and a turning box, all drawn in the first slice only.
float scene(float2 q, float t) {
    float d = 1e3;
    for (int i = 0; i < 3; i++) {
        float life = fract(t * 0.12 + float(i) / 3.0);
        d = min(d, sdCircle(q - bead(i, t), 0.05 + 0.1 * sin(3.14159 * life)));
    }
    float2 b = rot(q - float2(0.55, 0.0), t * 0.7);
    return min(d, sdBox(b, float2(0.07, 0.07)) - 0.02);
}

float4 shade(float2 uv, constant Uniforms& u, constant Params& p) {
    float px = 2.4 / min(u.resolution.x, u.resolution.y);
    float2 q = (uv - 0.5) * u.resolution * px;
    float t = u.time * p.speed;
    // A whole number of slices, so they meet up all the way round.
    float n = max(floor(p.segments + 0.5), 2.0);
    float2 w = slices(q, n, t * 0.15);
    // The shapes are drawn once, in the folded coordinates, and appear in every slice.
    float d = scene(w, t);
    float inside = 1.0 - smoothstep(-px, px, d);
    // A faint line where each slice begins. A shape crossing it is cut off: the next slice does not continue it.
    float seam = smoothstep(px * 2.0, 0.0, abs(w.y)) * 0.6;
    float3 col = float3(0.28, 0.04, 0.03) + float3(1.0, 0.95, 0.87) * inside;
    col += float3(1.0, 0.59, 0.2) * seam;
    return float4(col, 1.0);
}

// Stage 3 · Mirrors
// Fold each slice in half, so its two halves reflect each other. The seams vanish, and the shapes become a kaleidoscope.

// @param speed 0.5 0.0 2.0 How fast the shapes drift and the pattern turns
// @param segments 6.0 2.0 16.0 How many mirrored pairs of slices go round the centre
// @param blend 0.3 0.0 1.0 How softly the shapes melt into each other

constant float TAU = 6.2831853;

// The kaleidoscope: the slices of stage 2, then a mirror down the middle of each.
float2 kaleido(float2 q, float n, float spin) {
    float r = length(q);
    float a = atan2(q.y, q.x) + spin;
    float slice = TAU / n;
    a -= slice * floor(a / slice);
    a = abs(a - slice * 0.5);
    return r * float2(cos(a), sin(a));
}

float sdCircle(float2 p, float r) {
    return length(p) - r;
}

float sdBox(float2 p, float2 b) {
    float2 d = abs(p) - b;
    return length(max(d, 0.0)) + min(max(d.x, d.y), 0.0);
}

// The smooth minimum from episode 2.
float smin(float a, float b, float k) {
    float h = max(k - abs(a - b), 0.0) / k;
    return min(a, b) - h * h * k * 0.25;
}

float2 rot(float2 p, float a) {
    float c = cos(a), s = sin(a);
    return float2(c * p.x - s * p.y, s * p.x + c * p.y);
}

float2 bead(int i, float t) {
    float life = fract(t * 0.12 + float(i) / 3.0);
    float r = 0.1 + life * 2.4;
    float side = 0.5 + 0.5 * sin(t * 0.9 + float(i) * 2.1);
    return float2(r, r * 0.45 * side);
}

// Three beads that grow and shrink as they drift out, a turning box and a ring, melted together.
float scene(float2 q, float t, float k) {
    float d = 1e3;
    for (int i = 0; i < 3; i++) {
        float life = fract(t * 0.12 + float(i) / 3.0);
        float size = 0.05 + 0.1 * sin(3.14159 * life);
        // Fade in at the centre and out at the edge, by pushing the distance away, so no bead pops in or out.
        float fade = smoothstep(0.0, 0.1, life);
        fade *= 1.0 - smoothstep(0.8, 1.0, life);
        d = smin(d, sdCircle(q - bead(i, t), size) + (1.0 - fade) * 0.6, k);
    }
    float2 b = rot(q - float2(0.55, 0.0), t * 0.7);
    d = smin(d, sdBox(b, float2(0.07, 0.07)) - 0.02, k);
    d = smin(d, abs(sdCircle(q, 0.95 + 0.06 * sin(t * 0.6))) - 0.015, k);
    return d;
}

float4 shade(float2 uv, constant Uniforms& u, constant Params& p) {
    float px = 2.4 / min(u.resolution.x, u.resolution.y);
    float2 q = (uv - 0.5) * u.resolution * px;
    float t = u.time * p.speed;
    float n = max(floor(p.segments + 0.5), 2.0);
    float2 w = kaleido(q, n, t * 0.15);
    float d = scene(w, t, max(p.blend * 0.3, 0.0001));
    float inside = 1.0 - smoothstep(-px, px, d);
    float glow = exp(-max(d, 0.0) * 9.0);
    float3 col = float3(0.28, 0.04, 0.03) * (0.4 + glow);
    col += float3(1.0, 0.95, 0.87) * inside;
    return float4(col, 1.0);
}

// Stage 4 · A twist and a zoom
// Add to the angle a little more the further out a pixel is, and the slices bend into a spiral. Scale the pixels to zoom.

// @param speed 0.5 0.0 2.0 How fast the shapes drift and the pattern turns
// @param segments 6.0 2.0 16.0 How many mirrored pairs of slices go round the centre
// @param twist 0.6 -3.0 3.0 Bends the slices into a spiral, more the further out
// @param zoom 1.0 0.4 2.5 How much of the pattern fits on screen: higher zooms out
// @param blend 0.3 0.0 1.0 How softly the shapes melt into each other

constant float TAU = 6.2831853;

// The kaleidoscope, with a twist: the angle turns by twist * r, so the further out, the more it turns.
float2 kaleido(float2 q, float n, float spin, float twist) {
    float r = length(q);
    float a = atan2(q.y, q.x) + spin + twist * r;
    float slice = TAU / n;
    a -= slice * floor(a / slice);
    a = abs(a - slice * 0.5);
    return r * float2(cos(a), sin(a));
}

float sdCircle(float2 p, float r) {
    return length(p) - r;
}

float sdBox(float2 p, float2 b) {
    float2 d = abs(p) - b;
    return length(max(d, 0.0)) + min(max(d.x, d.y), 0.0);
}

// The smooth minimum from episode 2.
float smin(float a, float b, float k) {
    float h = max(k - abs(a - b), 0.0) / k;
    return min(a, b) - h * h * k * 0.25;
}

float2 rot(float2 p, float a) {
    float c = cos(a), s = sin(a);
    return float2(c * p.x - s * p.y, s * p.x + c * p.y);
}

float2 bead(int i, float t) {
    float life = fract(t * 0.12 + float(i) / 3.0);
    float r = 0.1 + life * 2.4;
    float side = 0.5 + 0.5 * sin(t * 0.9 + float(i) * 2.1);
    return float2(r, r * 0.45 * side);
}

// Three beads that grow and shrink as they drift out, a turning box and a ring, melted together.
float scene(float2 q, float t, float k) {
    float d = 1e3;
    for (int i = 0; i < 3; i++) {
        float life = fract(t * 0.12 + float(i) / 3.0);
        float size = 0.05 + 0.1 * sin(3.14159 * life);
        // Fade in at the centre and out at the edge, by pushing the distance away, so no bead pops in or out.
        float fade = smoothstep(0.0, 0.1, life);
        fade *= 1.0 - smoothstep(0.8, 1.0, life);
        d = smin(d, sdCircle(q - bead(i, t), size) + (1.0 - fade) * 0.6, k);
    }
    float2 b = rot(q - float2(0.55, 0.0), t * 0.7);
    d = smin(d, sdBox(b, float2(0.07, 0.07)) - 0.02, k);
    d = smin(d, abs(sdCircle(q, 0.95 + 0.06 * sin(t * 0.6))) - 0.015, k);
    return d;
}

float4 shade(float2 uv, constant Uniforms& u, constant Params& p) {
    // Zoom scales every pixel: at 2, each pixel covers twice as much of the pattern.
    float px = 2.4 * p.zoom / min(u.resolution.x, u.resolution.y);
    float2 q = (uv - 0.5) * u.resolution * px;
    float t = u.time * p.speed;
    float n = max(floor(p.segments + 0.5), 2.0);
    float2 w = kaleido(q, n, t * 0.15, p.twist);
    float d = scene(w, t, max(p.blend * 0.3, 0.0001));
    float inside = 1.0 - smoothstep(-px, px, d);
    float glow = exp(-max(d, 0.0) * 9.0);
    float3 col = float3(0.28, 0.04, 0.03) * (0.4 + glow);
    col += float3(1.0, 0.95, 0.87) * inside;
    return float4(col, 1.0);
}

float3 kiln(float t) {
    float3 c0 = float3(0.020, 0.012, 0.020);
    float3 c1 = float3(0.280, 0.040, 0.030);
    float3 c2 = float3(0.880, 0.260, 0.050);
    float3 c3 = float3(1.000, 0.680, 0.200);
    float3 c4 = float3(1.000, 0.970, 0.840);
    t = clamp(t, 0.0, 1.0);
    float3 c = mix(c0, c1, smoothstep(0.00, 0.22, t));
    c = mix(c, c2, smoothstep(0.22, 0.50, t));
    c = mix(c, c3, smoothstep(0.50, 0.76, t));
    return mix(c, c4, smoothstep(0.76, 1.00, t));
}

float4 shade(float2 uv, constant Uniforms& u, constant Params& p) {
    float px = 2.4 * p.zoom / min(u.resolution.x, u.resolution.y);
    float2 q = (uv - 0.5) * u.resolution * px;
    float t = u.time * p.speed;
    float n = max(floor(p.segments + 0.5), 2.0);
    float2 w = kaleido(q, n, t * 0.15, p.twist);
    float k = max(p.blend * 0.3, 0.0001);
    float d = scene(w, t, k);
    // Inside: hotter towards the middle of each shape.
    float core = 0.62 + 0.38 * clamp(-d * 8.0, 0.0, 1.0);
    // Outside: flowing noise in the folded space, so it is mirrored too, then a glow and rings around the shapes.
    float smoke = fbm(w * 3.0 + float2(-t * 0.4, t * 0.15));
    float glow = exp(-max(d, 0.0) * 9.0);
    float ring = 0.5 + 0.5 * cos(TAU * (14.0 * d - t * 0.8));
    float outside = 0.04 + 0.22 * smoke + 0.34 * glow;
    outside += 0.12 * ring * exp(-max(d, 0.0) * 5.0);
    // Darker towards the edge of the screen, like looking down the tube.
    outside *= 1.0 - 0.35 * smoothstep(0.8, 1.8, length(q) / p.zoom);
    float heat = mix(core, outside, smoothstep(-px, px, d));
    float3 col = kiln(heat + (p.heat - 0.5) * 0.5);
    return float4(col, 1.0);
}

// Ray Kiln · Episode 4 · Kaleidoscope
//
// @episode 4 Kaleidoscope
// @length 60
// @variation 30
// @variations 1,2,4,5,6,9,10,11
// @still 18.0
// @teaches Polar coordinates, angular repetition, mirror folds
// @category Fragment
// @tags polar coordinates, kaleidoscope, symmetry, signed distance fields, procedural sound
// @final Kiln glass | Colour the folded shapes with the kiln palette, glow and rings around them, and flowing noise behind.
//
// A handful of glowing shapes drifting through one thin wedge of the screen, mirrored and repeated around the centre
// until they fill it, like coloured glass between the mirrors of a kaleidoscope.
// Each @param line below becomes a slider in the host app and a row in the page's parameters table:
//   // @param name default min max description

// @param speed 0.5 0.0 2.0 How fast the shapes drift and the pattern turns
// @param segments 6.0 2.0 16.0 How many mirrored pairs of slices go round the centre
// @param twist 0.6 -3.0 3.0 Bends the slices into a spiral, more the further out
// @param zoom 1.0 0.4 2.5 How much of the pattern fits on screen: higher zooms out
// @param blend 0.3 0.0 1.0 How softly the shapes melt into each other
// @param heat 0.5 0.0 1.0 Slides the palette from deep ember to white-hot
// @param volume 0.8 0.0 1.0 Loudness of the sound

constant float TAU = 6.2831853;

// ---- Folding ---------------------------------------------------------------------------------------------------
// The kaleidoscope: turn a point into an angle and a radius, cut the circle into equal slices, put every slice on top
// of the first, mirror every other one, and turn the angle and radius back into a point.

float2 kaleido(float2 q, float n, float spin, float twist) {
    float r = length(q);
    float a = atan2(q.y, q.x) + spin + twist * r;
    float slice = TAU / n;
    // Angular repetition: every slice lands on the first.
    a -= slice * floor(a / slice);
    // Mirror fold: the two halves of a slice reflect each other.
    a = abs(a - slice * 0.5);
    return r * float2(cos(a), sin(a));
}

// ---- Shapes (episode 2) ----------------------------------------------------------------------------------------

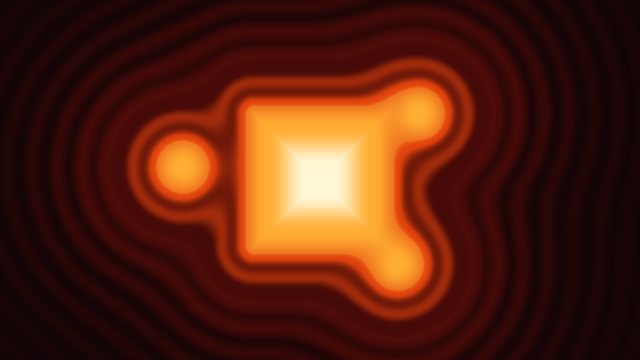

float sdCircle(float2 p, float r) {
    return length(p) - r;
}

float sdBox(float2 p, float2 b) {
    float2 d = abs(p) - b;
    return length(max(d, 0.0)) + min(max(d.x, d.y), 0.0);
}

float smin(float a, float b, float k) {
    float h = max(k - abs(a - b), 0.0) / k;
    return min(a, b) - h * h * k * 0.25;
}

float2 rot(float2 p, float a) {
    float c = cos(a), s = sin(a);
    return float2(c * p.x - s * p.y, s * p.x + c * p.y);
}

// Where bead i is: it rises from the centre, drifts out along the slice, and sways across it as it goes.
float2 bead(int i, float t) {
    float life = fract(t * 0.12 + float(i) / 3.0);
    float r = 0.1 + life * 2.4;
    float side = 0.5 + 0.5 * sin(t * 0.9 + float(i) * 2.1);
    return float2(r, r * 0.45 * side);
}

// Everything in the wedge: three drifting beads, a turning box and a ring, melted together.
float scene(float2 q, float t, float k) {
    float d = 1e3;
    for (int i = 0; i < 3; i++) {
        float life = fract(t * 0.12 + float(i) / 3.0);
        float size = 0.05 + 0.1 * sin(3.14159 * life);
        // Fade in at the centre and out at the edge, by pushing the distance away, so no bead pops in or out.
        float fade = smoothstep(0.0, 0.1, life);
        fade *= 1.0 - smoothstep(0.8, 1.0, life);
        d = smin(d, sdCircle(q - bead(i, t), size) + (1.0 - fade) * 0.6, k);
    }
    float2 b = rot(q - float2(0.55, 0.0), t * 0.7);
    d = smin(d, sdBox(b, float2(0.07, 0.07)) - 0.02, k);
    d = smin(d, abs(sdCircle(q, 0.95 + 0.06 * sin(t * 0.6))) - 0.015, k);
    return d;
}

// ---- Colour (episode 1) ----------------------------------------------------------------------------------------

float hash21(float2 p) {
    p = fract(p * float2(123.34, 456.21));
    p += dot(p, p + 45.32);
    return fract(p.x * p.y);
}

float vnoise(float2 p) {
    float2 i = floor(p), f = fract(p);
    f = f * f * (3.0 - 2.0 * f);
    float a = hash21(i), b = hash21(i + float2(1, 0));
    float c = hash21(i + float2(0, 1)), d = hash21(i + float2(1, 1));
    return mix(mix(a, b, f.x), mix(c, d, f.x), f.y);
}

float fbm(float2 p) {
    float v = 0.0, a = 0.5;
    for (int i = 0; i < 4; i++) {
        v += a * vnoise(p);
        p = p * 2.03 + float2(17.1, 9.2);
        a *= 0.5;
    }
    return v;
}

float3 kiln(float t) {
    float3 c0 = float3(0.020, 0.012, 0.020);
    float3 c1 = float3(0.280, 0.040, 0.030);
    float3 c2 = float3(0.880, 0.260, 0.050);
    float3 c3 = float3(1.000, 0.680, 0.200);
    float3 c4 = float3(1.000, 0.970, 0.840);
    t = clamp(t, 0.0, 1.0);
    float3 c = mix(c0, c1, smoothstep(0.00, 0.22, t));
    c = mix(c, c2, smoothstep(0.22, 0.50, t));
    c = mix(c, c3, smoothstep(0.50, 0.76, t));
    return mix(c, c4, smoothstep(0.76, 1.00, t));
}

float4 shade(float2 uv, constant Uniforms& u, constant Params& p) {
    float px = 2.4 * p.zoom / min(u.resolution.x, u.resolution.y);
    float2 q = (uv - 0.5) * u.resolution * px;
    float t = u.time * p.speed;
    float n = max(floor(p.segments + 0.5), 2.0);
    float2 w = kaleido(q, n, t * 0.15, p.twist);
    float k = max(p.blend * 0.3, 0.0001);
    float d = scene(w, t, k);
    // Inside: hotter towards the middle of each shape.
    float core = 0.62 + 0.38 * clamp(-d * 8.0, 0.0, 1.0);
    // Outside: flowing noise in the folded space, so it is mirrored too, then a glow and rings around the shapes.
    float smoke = fbm(w * 3.0 + float2(-t * 0.4, t * 0.15));
    float glow = exp(-max(d, 0.0) * 9.0);
    float ring = 0.5 + 0.5 * cos(TAU * (14.0 * d - t * 0.8));
    float outside = 0.04 + 0.22 * smoke + 0.34 * glow;
    outside += 0.12 * ring * exp(-max(d, 0.0) * 5.0);
    // Darker towards the edge of the screen, like looking down the tube.
    outside *= 1.0 - 0.35 * smoothstep(0.8, 1.8, length(q) / p.zoom);
    float heat = mix(core, outside, smoothstep(-px, px, d));
    float3 col = kiln(heat + (p.heat - 0.5) * 0.5);
    return float4(col, 1.0);
}

// ---- Sound -----------------------------------------------------------------------------------------------------
// The same ideas, in time instead of space. A pattern of notes repeats, one note for each slice of the circle, like the
// slices of the picture. The right ear hears the left ear's pattern in a mirror: the same notes in reverse order. Under
// them a low drone on D, and the ring in the picture swells it as it breathes.

// D minor pentatonic, from D4 up.
float scaleNote(int i) {
    const float notes[16] = {293.66, 349.23, 392.00, 440.00, 523.25, 587.33, 698.46, 783.99,
                             880.00, 1046.50, 1174.66, 1396.91, 1567.98, 1760.00, 2093.00, 2349.32};
    return notes[clamp(i, 0, 15)];
}

// A soft plucked note: a sine and its octave, starting quickly and dying away.
float pluck(float f, float since, float t) {
    float env = (1.0 - exp(-since * 250.0)) * exp(-since * 5.0);
    return (sin(TAU * f * t) + 0.3 * sin(TAU * 2.0 * f * t)) * env;
}

float2 sound(float t, constant Params& p) {
    float ts = t * p.speed;
    int n = int(max(floor(p.segments + 0.5), 2.0));

    // Two notes a second at the default speed (four at speed 1), n notes in each turn of the pattern.
    // The note before still rings as the next begins, so it is heard dying away rather than cut off.
    float steps = ts * 4.0;
    float stepLength = 1.0 / max(p.speed * 4.0, 0.001);       // seconds per note
    float left = 0.0, right = 0.0;
    for (int back = 0; back < 2; back++) {
        int j = (int(floor(steps)) - back + n * 1000) % n;
        // Seconds since that note began.
        float since = (fract(steps) + float(back)) * stepLength;
        left += pluck(scaleNote(j), since, t);
        right += pluck(scaleNote(n - 1 - j), since, t);
    }
    // Each ear hears a little of the other, so the mirror sounds like one instrument, not two.
    float2 arp = float2(left + 0.3 * right, right + 0.3 * left) * 0.09;

    // The drone: D2 and A2, a few cents apart in each ear, breathing with the ring.
    float breath = 0.7 + 0.3 * sin(ts * 0.6);
    float2 drone = float2(sin(TAU * 73.42 * 1.001 * t) + 0.6 * sin(TAU * 110.0 * 1.001 * t),
                          sin(TAU * 73.42 * 0.999 * t + 1.0) + 0.6 * sin(TAU * 110.0 * 0.999 * t + 1.0));
    drone *= breath * 0.12;

    float fadeIn = smoothstep(0.0, 2.0, t);
    return tanh((arp + drone) * 1.6) * fadeIn * p.volume;
}

struct Uniforms {
    var resolution: SIMD2<Float>
    var time: Float
    var timeDelta: Float
    var mouse: SIMD2<Float>
    var frame: UInt32
    var pad: UInt32 = 0
}

let library = try device.makeLibrary(source: standaloneSource, options: nil)
let descriptor = MTLRenderPipelineDescriptor()
descriptor.vertexFunction = library.makeFunction(name: "rk_vertex")
descriptor.fragmentFunction = library.makeFunction(name: "rk_fragment")
descriptor.colorAttachments[0].pixelFormat = .bgra8Unorm
let pipeline = try device.makeRenderPipelineState(descriptor: descriptor)

// Each frame, inside a render pass:
var uniforms = Uniforms(resolution: size, time: time, timeDelta: dt, mouse: mouse, frame: frame)
var params: [Float] = [0.5, 6.0, 0.6, 1.0, 0.3, 0.5, 0.8]     // the @param defaults, in the order they are declared
encoder.setRenderPipelineState(pipeline)
encoder.setFragmentBytes(&uniforms, length: MemoryLayout<Uniforms>.stride, index: 0)
encoder.setFragmentBytes(&params, length: params.count * MemoryLayout<Float>.stride, index: 1)
encoder.drawPrimitives(type: .triangle, vertexStart: 0, vertexCount: 3)
